MOD K1 BELT

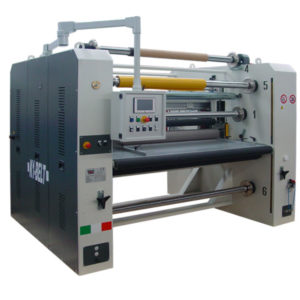

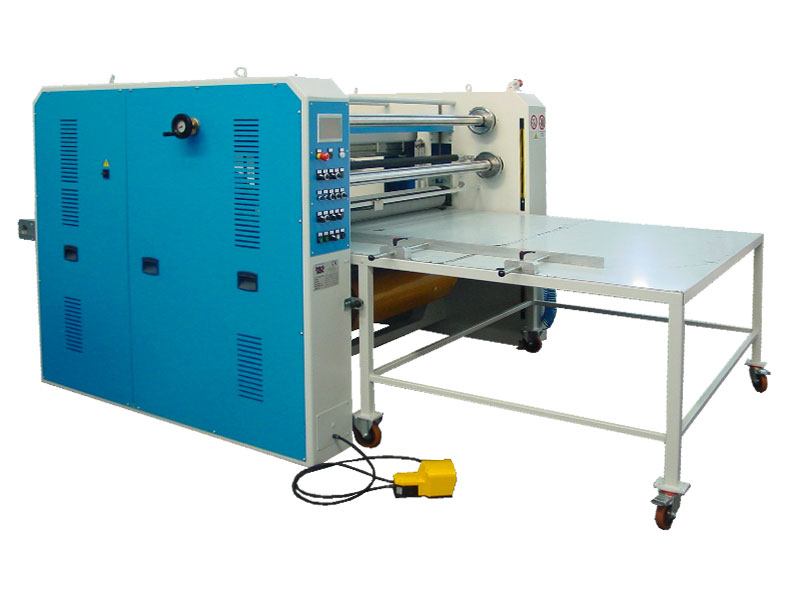

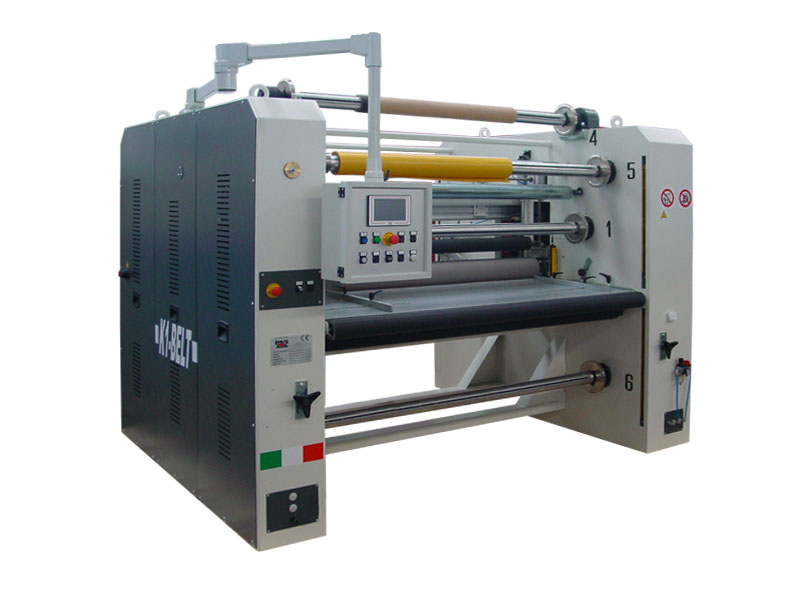

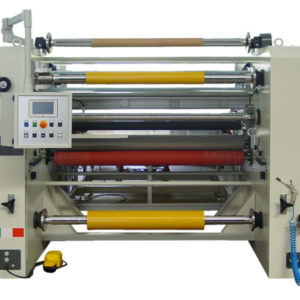

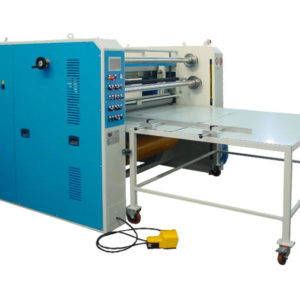

Imesa MOD K1 BELT calandering machine, furnished with a motorized conveyor belt, has been specifically designed for the sheet-to-sheet applications.
It can laminate plates of materials onto foam or other materials such as rubber, melamine, EPDM, polypropylene, polyethylene, polyurethane, etc.
Thanks to the material conveyor belts, in the entrance or also in the exit area, optimisation of all sheet converting process is ensured.

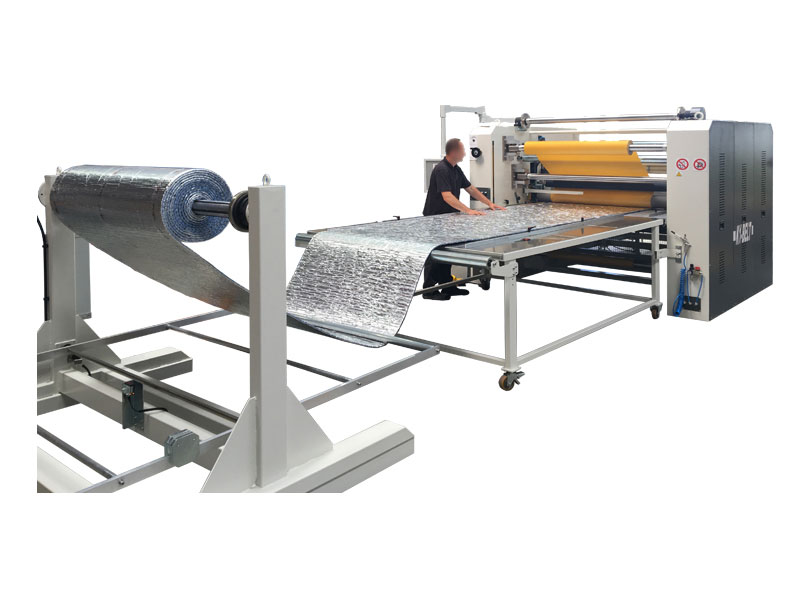

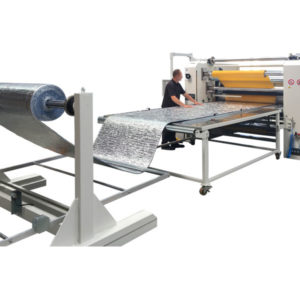

If necessary, our K1 conveyor BELT laminating machine can be completed with an external unwinder, a longitudinal or a transversal cutting system.
Depending on the applications and materials, plates detectors with contactless sensor system are also available, useful to detect the presence, thickness and colour of the sheets and to synchronize the automatic working cycle.
- Laminator machine with heatable rollers with integrated cutting system

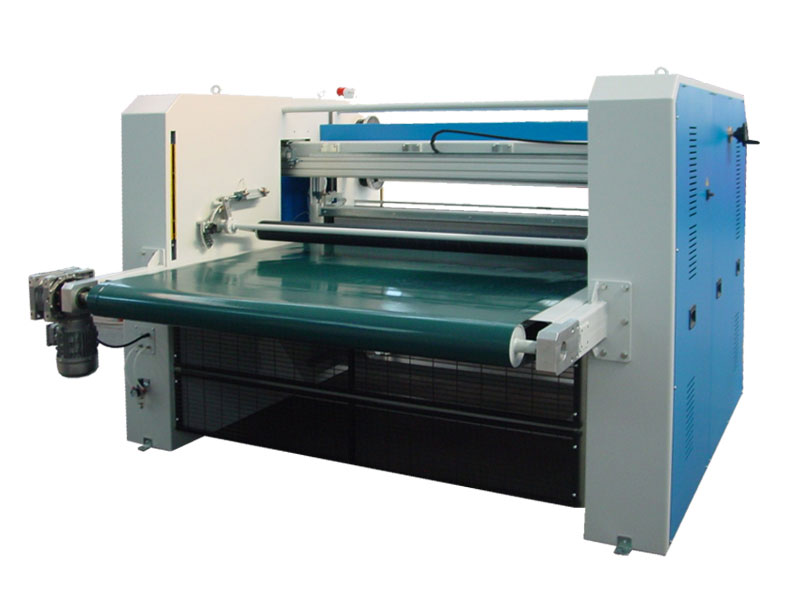

- Conveyor belt for material transport
- Contactless sheet-control sensors available for: presence, thickness, colour (depending on materials and applications)
- Electronically controlled speed up to 20 m/min.
- Roller temperature heated up to 90° C
- Available for material widths from 1600 mm to 2100 mm
Customisable to customer specification with the following devices:
- Slit shear razor blade cut or crush cutting system
- Cross cutting with motorised blade or “flying cut”
- Expanding air shafts (Ø 50-153mm 2-6”)
- Liner Remover
- Scraps removal device
- Input systems using table, roller conveyor, conveyor belt or “pick and place” system
- Material output using table, roller conveyor, conveyor belt or automatic “pick and place” system
- External unwinders managed by PLC
- Automatic alignment system through contactless sensors
- Speed and tension control managed by PLC
All our products are design and manufactured in compliance of the EC/UL safety norms.
Imesa reserves the right to modify the features of its machinery, even accordingly to new technological developments.
